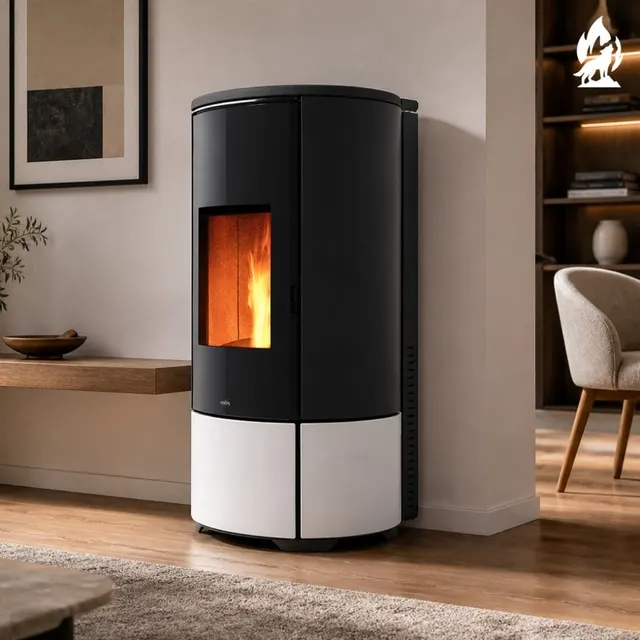

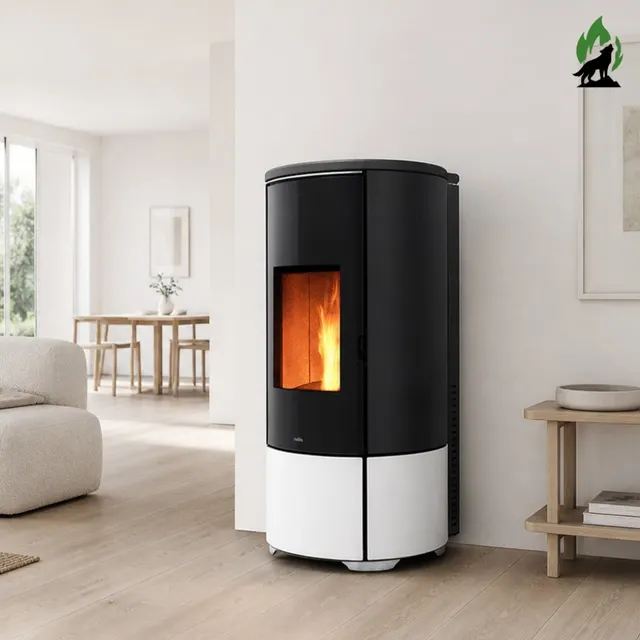

Pellet stove Nobis H10/12 Shape Maiolica white

How does the Nobis pellet stove with a water jacket work?

The stove is a fully automatic device that independently feeds pellets into the firebox, generates the proper chimney draft, and ignites the fire. The automatic system fully manages the operation of the components, ensuring optimal operating conditions.

The following operating modes are available to the user:

• manual mode – allows you to turn the stove on and off and adjust the water jacket temperature and room temperature using a radio-controlled remote with a built-in temperature sensor.

• Comfort Clima – the heater automatically turns on and off based on the set room temperature,

• weekly timer – allows you to set the on and off times for the unit on selected days of the week,

• Wi-Fi module – enables remote control functionality when connected to a wireless Internet network.

Water jacket for central heating and domestic hot water

The Nobis pellet-fired water-heating fireplace transfers heat to the central heating system, enabling it to supply radiators, a buffer tank, or underfloor heating. It can also work with a domestic hot water tank, allowing a single unit to be used for both heating the home and providing hot water.

The fireplace comes factory-equipped with the components needed to integrate with the system:

• an energy-efficient circulation pump,

• a diaphragm vessel for installation in a closed system,

• a 2.5-bar pressure relief valve,

• a water jacket temperature sensor,

• an electronic system water pressure gauge.

Optional upon installation of an additional control board:

• DHW tank or buffer tank temperature measurement,

• control of a 3-way valve to separate the central heating and DHW systems.

Additionally, the heater is equipped with a front-mounted warm-air blower, which speeds up the heating of the room in which it is installed. This solution makes it possible, for example, to avoid installing an additional radiator in the living room. The operation of the blower can be freely controlled or turned off completely.

Automatic Firebox Cleaning

The firebox basket is equipped with a rotating system. The automatic system continuously monitors the condition of the firebox and initiates cleaning only when necessary. The stove automatically extinguishes itself, cleans the firebox, and reignites, maintaining high efficiency and ease of use.

The wide ash pan makes it easy to remove ash, reducing the effort required for daily use of the stove. Under the right conditions, maintenance may be as simple as emptying the ash pan once every two weeks or so.

Smart Pellet Combustion Optimization System

It continuously adjusts the unit’s operation to current heat demand, increasing its efficiency and performance. Thanks to two sensors that monitor the flame and exhaust gas temperatures, the system continuously optimizes the combustion process. This reduces pellet consumption by up to 20%*, ensuring greater comfort and lower heating costs.

*Depending on operating conditions and how the unit is used.

Optimal combustion and a beautiful flame

The Perfect Combustion system automatically adjusts combustion parameters to the type of pellets being used and the installation conditions, even when these vary. This solution ensures high efficiency, stable operation, and an aesthetically pleasing flame, helping to conserve pellets. A clean firebox and a glass protection system let you enjoy the view of the fire longer without having to tend to the stove frequently.

Quiet operation at any power setting

Silent Brushless technology reduces the stove’s operating noise thanks to a brushless pellet feed system and optimized fan operation. The unit effectively distributes heat while maintaining a high level of acoustic comfort—even when the fan is running. Additionally, the Nobis fireplace can operate in convection heating mode, just like a standard wood-burning fireplace. With the blower completely turned off, the stove radiates heat into the room without any unpleasant mechanical noises.

Remote Control of the Fireplace

The Nobis Connect system allows you to control the stove using the free Nobis-Fi app—from home or from anywhere else. You can turn the stove on and off, monitor its operation, set the temperature, and program its operating hours.

A clean glass panel and a clear view of the flame

The Shine Transparent Glass system uses two independent air channels that create a protective curtain between the flame and the glass. This reduces soot buildup, keeping the glass clean longer and ensuring an unobstructed view of the fire.

Double-Pane Firebox

The firebox door of the Nobis pellet stove is equipped with double-pane glass: an inner pane in direct contact with the fire and an outer pane. The two panes reduce direct heat transfer to the room where the stove is located, increasing the appliance’s safety during operation. This feature is especially recommended if there are pets or small children in the home.
